Your plant always arrives safely

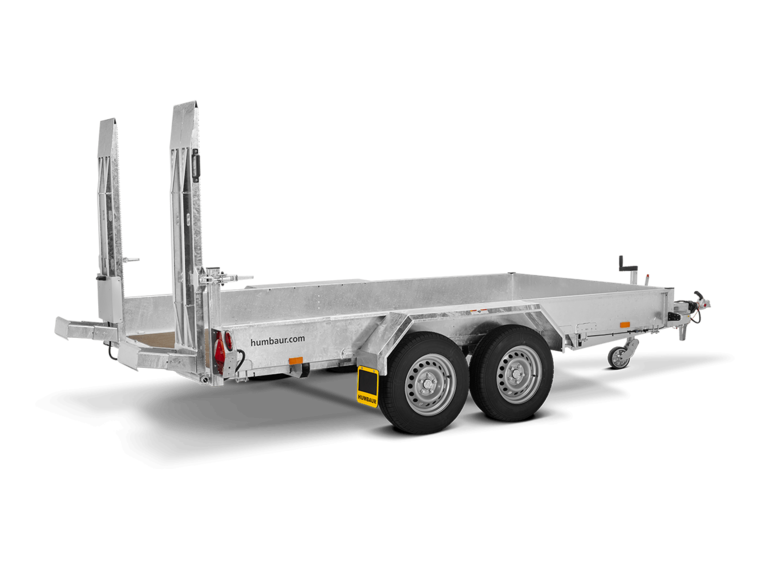

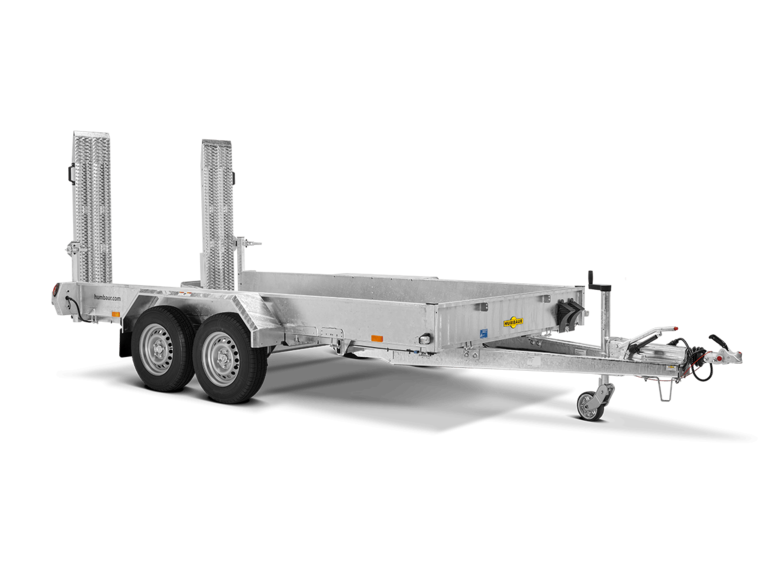

HS Transporter with drive-up ramps

To the models
Fast and safe loading

The most important features of the HS models

Available as a tandem

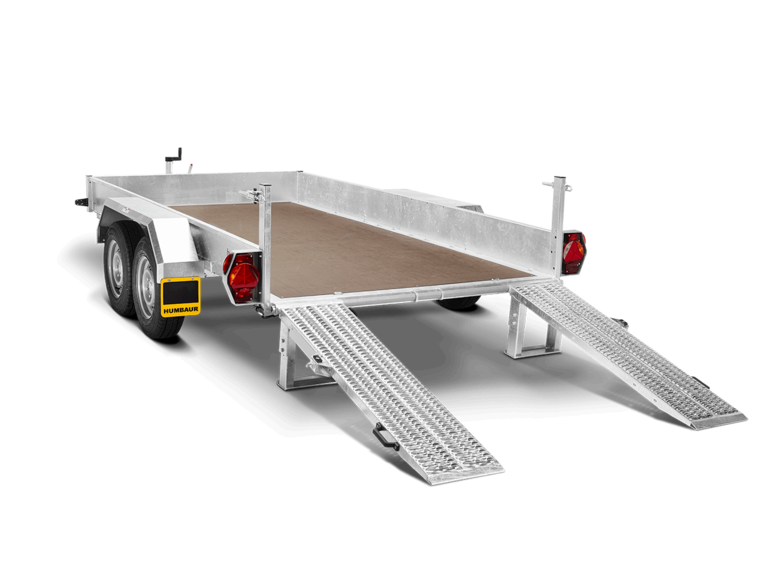

Easy loading

  • Steel ramps, hot-dip galvanised in an immersion bath
  • Accessible steel mudguards that are flush with the side panels
  • Fully automatic jockey wheel

Professional version

  • Payload-optimised construction machinery transporter
  • Carries a payload of up to 2800 kg
  • Aluminium drive-up ramps with integrated support
  • Around 200 mm high all-round rails
  • As an option with excavator bucket support (folding or fixed), height-adjustable drawbar (without ball head coupling and DIN towing eye) and toolbox

Additional features

  • Body

    Bolted V drawbar, hot-dip galvanised

    Welded side panel/frame construction made of sheet steel, hot-dip galvanised


  • Electrics

    13-pin plug

    Reversing light

    Humbaur multi-function light

  • Securing loads

    Fitted tie-down rings x 12 (6 pairs) in the outer frame for 3000 mm body length and x 14 (7 pairs) for 3750 mm body length; each tie-down ring is able to withstand a tensile force of 1000 kg

Models

  • HS 253016

    Braked, Two axle

    Gross weight:
    2 500 kg
    Load capacity:
    1 850 kg
    Inner length:
    3 000 mm
    Inner width:
    1 600 mm
    from 5 848,80 €
    Configure
  • HS 303016

    Braked, Two axle

    Gross weight:
    3 000 kg
    Load capacity:
    2 340 kg
    Inner length:
    3 000 mm
    Inner width:
    1 600 mm
    from 6 085,20 €
    Configure
  • HS 253718

    Braked, Two axle

    Gross weight:
    2 500 kg
    Load capacity:
    1 760 kg
    Inner length:
    3 750 mm
    Inner width:
    1 850 mm
    from 6 568,80 €
    Configure
  • HS 303718

    Braked, Two axle

    Gross weight:
    3 000 kg
    Load capacity:
    2 250 kg
    Inner length:
    3 750 mm
    Inner width:
    1 850 mm
    from 6 930,00 €
    Configure
  • HS 353016

    Braked, Two axle

    Gross weight:
    3 500 kg
    Load capacity:
    2 770 kg
    Inner length:
    3 000 mm
    Inner width:
    1 600 mm
    from 7 287,60 €
    Configure
  • HS 353718

    Braked, Two axle

    Gross weight:
    3 500 kg
    Load capacity:
    2 680 kg
    Inner length:
    3 750 mm
    Inner width:
    1 850 mm
    from 7 848,00 €
    Configure
  • HS 353516 Profi

    Braked, Two axle

    Gross weight:
    3 500 kg
    Load capacity:
    2 800 kg
    Inner length:
    3 500 mm
    Inner width:
    1 640 mm
    from 8 150,40 €
    Configure
Employee works at a computer with a headset and smiles | © Humbaur GmbH

Would you like help configuring the model you want?

We would love to advise you on the configuration of your personalised HS trailer!

Arrange a consultation now

Humbaur specialist partners near you

We have more than 500 specialist partners throughout Germany providing sales and service support. Find a Humbaur partner in your area!

Find a dealer now

All information is provided without guarantee. Subject to change without notice. Illustrations may show optional extras. Accessories are available as an option.
