More Space

and comfort for your horses, with an impressive appearance
i
  • External wheels with plastic mudguard.
i
  • Lateral side walls, 2210 mm total height, made by a double-walled aluminium profile.
i
  • Massive, surrounding aluminium roof profile.
i
  • Rear ramp with integrated anti-slip rubber steps, 2 gas pressure springs and climb step.
i
  • Elegant galvanised side wall bracing.
i
  • Polyester roof and front are available in all RAL colours at an additional charge.
  • Black and silver are available as standard.
i

Tinted display windows, left and right

i
  • High entry door right side incl. 3-point locking mechanism (left side optional)
i
  • AluBiComp floor, 21 mm thick, with rubber bed 8 mm thick, glued and sealed.
i
  • Divided and padded breast and breech bars, height- and length-adjustable with panic release
i
  • Straight partition wall.
i
  • Exclusive windshield for draught-free interior ventilation.
i
  • The Humbaur creates a pleasant atmosphere in the twilight for horse and human.
i
  • Solid roof construction with roof bracket
i
  • Large, walk-in cabin with high access door at the front, with saddle- and snaffle holder.
i
  • High door in the intermediate wall for access to the front cab (optional).
i
  • Automatic jockey wheel, centrally mounted.
i
  • 13-pin plug with reversing and fog lights.
i
  • Sliding windows optional.

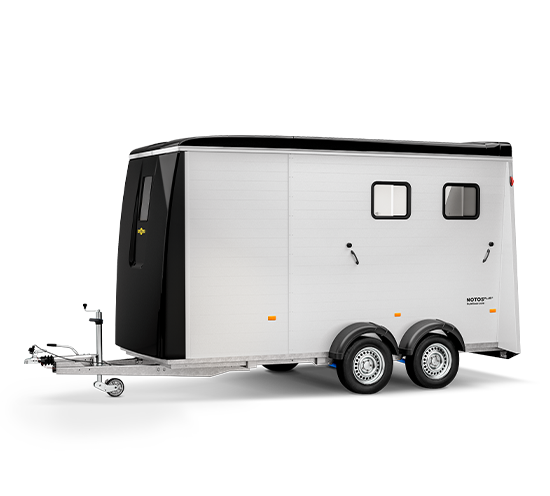

The Notos© PLUS is the Humbaur Business Class for your horse transport needs. It can comfortably transport two horses. Its generous front cab (which can be removed upon request) offers a large space for your saddles, tack and all the rider's accoutrements. The tailgate comes fitted with a rubber matting with added anti-slip strips. Fitted with an AluBiComp floor as standard. The side walls are made from sturdy aluminium profiles and are complemented by the roof and front section in polyester throughout. A large-volume trailer that leaves nothing to be desired.

The Notos® PLUS horse trailer in detail:

External wheels with plastic mudguard
Side walls made from aluminium profiles
Massive, surrounding aluminium roof profile
Rear ramp with integrated anti-slip rubber steps
Hot-dip galvanised side-wall supports
Polyester roof and front in many colours
Tinted display windows
High entry door
AluBiComp floor
Divided and padded breast and breech bars
Straight partition wall
Exclusive windshield
Interior lighting
Solid roof construction with roof bracket
Large, walk-in cabin
High door in the intermediate wall
Automatic jockey wheel
13-pin plug with reversing and fog lights
Sliding windows optional
EquiDrive® PLUS S chassis with coil spring suspension and shock absorbers.
Designed for convenient transport of two horses.
EquiSpace® - our space concept for maximum room for the horses.
Our lockable partition EquiLock® provides absolute safety for your horses even when the tailgate is open.
AluBiComp floor, 21 mm thick, with rubber floor, 8 mm thick, glued and sealed.
Large entrance doors with 3-point lock.
Large saddle compartment with extra space for horse and rider equipment.

Choose a colour

  • All poly parts

Uni-colours

Metallic-colours

Design

360° view

Learn more about Notos PLUS
Images similar. Colour deviations from lacquering and colouring of parts of all kinds are possible and do not constitute a defect.

Technical data

Notos PLUS

Trailer Notos PLUS in detail
Notos PLUS silhouette sideview
Inner height 2.353 mmTotal height 2.894 mm
Inner length 4.220 mmTotal length 5.666 mm
Notos PLUS silhouette backside
Inner width 1.860 mmTotal width 2.355 mm

Notos PLUS Standard equipment

  • Side walls of double-walled, anodised aluminium profiles
  • 13-pin plug with reversing and fog lights
  • Sturdy one-piece circumferential galvanised frame profile, screwed-in V drawbar, wheel shock absorber
  • Rear ramp with high-grip rubber and sidestop, gas strut assistance and foothold
  • Elegant hot-dip galvanised side wall supports to the rear
  • Tinted vent windows, 2 on the left and 2 on the right in the horse compartment, 1 in the access door to the cab
  • High access door on the right with 3-point locking
  • AluBiComp floor, 21 mm thick with bonded 8 mm rubber bed, sealed
  • Split and padded breast and breech bars with panic release, adjustable in height and length
  • EquiLock® lockable partition wall
  • Exclusive roller wind deflector for draught-free interior ventilation
  • Internal lighting, hay net ring, two handles at the front for manoeuvring
  • Sturdy roof structure with 2 roof hoops
  • Side wall aluminium, polyester roof and front in Silver Metallic
  • Plastic mudguards
  • Large walk-in cab with saddle carrier for two saddles, sniffle holder and large access door

Notos PLUS Models

Permissible gross weight in kg
3000
3500
Load capacity in kg
1620
2095
Body dimensions in mm (LxWxH)
5666 x 2355 x 2894
5692 x 2355 x 2894
Internal dimensions in mm (LxWxH)
4220 x 1860 x 2353
4220 x 1860 x 2353
braked
Load height in mm
440
440
Tyre size in inches
14
14

Notos PLUS 3000

Permissible gross weight in kg
3000
braked
Body dimensions in mm (LxWxH)
5666 x 2355 x 2894
Tyre size in inches
14
Internal dimensions in mm (LxWxH)
4220 x 1860 x 2353
Load capacity in kg
1620
Load height in mm
440



Notos PLUS 3500

Permissible gross weight in kg
3500
braked
Body dimensions in mm (LxWxH)
5692 x 2355 x 2894
Tyre size in inches
14
Internal dimensions in mm (LxWxH)
4220 x 1860 x 2353
Load capacity in kg
2095
Load height in mm
440



How many horses can I transport?

Two heavy horses

... have adequate space in the roomy Notos PLUS horse trailer.

Two ponies

You can conveniently transport two ponies in the Notos PLUS, which is available in two weight classes.

One horse

Of course, a single horse can also enjoy the comfort of the spacious trailer.

A pair of horses

Two fully grown horses can also travel conveniently.

A Humbaur is well planned

We have also fulfilled the wishes which you believe nobody can fulfil.

Images similar; some images show special equipment.
