The plus in equipment

Entry level model with extras
i
  • EquiDrive® Standard longitudinal beam chassis
i
  • Side walls of double-walled, anodised Aluminium profiles.
i

Polyester Roof with tinted vent windows.

i
  • AluBiComp floor, 21 mm thick, with rubber bed 8 mm thick, glued and sealed.
i
  • Solid, all-round frame section (galvanised).
i
  • Elegant, galvanised rear outrigger with integrated lighting.
i
  • Ramp flap with granulate mat.
i
  • Divided and padded breast and breech bars with panic release.
i
  • The Humbaur creates a pleasant atmosphere in the twilight for horse and human.
i
  • Tyre size suitable for 100 km/h.
i

The AERO-dynamic front provides up to 20% more space in the saddle compartment. The lower air resistance saves you fuel

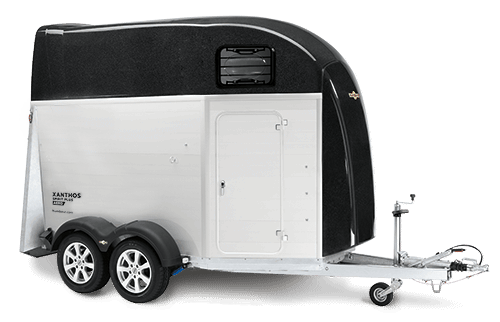

The Xanthos© SPIRIT Plus AERO combines space and elegance and has many other impressive virtues. In addition to the tailgate, which has a rubber mat and is supported by a gas spring, other highlights of this horse trailer include a polyester roof with tinted vent windows and the AERO-dynamic front in Black Metallic as well as the EquiSpace© design concept, which includes divided breast and breech bars and a breast bar with panic release. The AERO-dynamic front allows for more space in the saddle compartment and optimum handling with lower fuel consumption than in conventional horse trailers. This is already fitted to the Xanthos© SPIRIT plus AERO. Other benefits include the EquiLock© lockable partition, side step protection, rubber flooring as well as wheel shock absorbers for approval to drive at speeds of up to 100 km/h in Germany.

EquiDrive® longitudinal beam chassis
Side walls made from aluminium profiles
Polyester roof with tinted vent windows
AluBiComp floor
Solid, all-round frame section (galvanised)
Elegant rear support
Ramp flap with granulate mat
Chest and rear bars
Interior lighting
Tyre size suitable for 100 km/h
AERO-dynamic front
The EquiDrive® chassis ensures the highest stability and thus the best possible safety.
Designed for convenient transport of two horses.
AluBiComp floor, 21 mm thick, with rubber floor, 8 mm thick, glued and sealed.
The AERO front offers improved aerodynamics and more space in the saddle compartment.

Technical data

Xanthos SPIRIT Plus Aero

Trailer Xanthos SPIRIT Plus Aero in detail
Xanthos SPIRIT Plus Aero silhouette sideview
Inner height 2.364 mmTotal height 2.865 mm
Inner length 3.447 mmTotal length 4.592 mm
Xanthos SPIRIT Plus Aero silhouette backside
Inner width 1.714 mmTotal width 2.235 mm

Xanthos SPIRIT Plus Aero Standard equipment

  • EquiDrive® chassis
  • Incl. wheel shock absorbers
  • AluBicomp floor 21 mm
  • Rubber flooring 8 mm, glued and sealed
  • Side panels made of double-walled anodised aluminium profiles
  • Incl. lockable saddle compartment with saddle holder, bridle holder, mirror, net, interior lighting, shovel and broom
  • Side step protection
  • Sturdy surrounding frame section (hot-dip galvanised
  • Elegant galvanised tail support with integrated lighting
  • Entry and service door with 3-point locking mechanism
  • Rear ramp with rubber granulate mat
  • Split and padded breast and breeching bars with panic release
  • EquiLock® lockable partition wall
  • Tinted windows in Polyester roof sides
  • Interior lighting and hay net ring
  • Automatic jockey wheel with shunting handle
  • Polyester roof and bow in Black-Metallic
  • Exclusive roller wind deflector for draught-free interior ventilation

Xanthos SPIRIT Plus Aero Models

Permissible gross weight in kg
2000
Load capacity in kg
1102
Body dimensions in mm (LxWxH)
4592 x 2235 x 2865
Internal dimensions in mm (LxWxH)
3447 x 1714 x 2364
braked
Load height in mm
415
Tyre size in inches
13

Xanthos Spirit Plus Aero 2000

Permissible gross weight in kg
2000
braked
Body dimensions in mm (LxWxH)
4592 x 2235 x 2865
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3447 x 1714 x 2364
Load capacity in kg
1102
Load height in mm
415



How many horses can I transport?

Two ponies

You can comfortably transport two ponies in the Xanthos® SPIRIT 2000.

One horse

Of course, a single horse can also enjoy the comfort of the Xanthos® SPIRIT.

A pair of horses

Two fully grown horses can travel conveniently in the spacious Xanthos ® SPIRIT.

Images similar; some images show special equipment.
