Vehicle transporter MTK

Compact Profi Transporter

Fit for daily vehicle transport
i

Bolted, hot-dip galvanised chassis

i

Welded, hot-dip galvanised tilting platform.

i

Tilting platform mechanically tiltable by gas pressure springs.

i

Steel ramps under the platform, extendable.

i

Cable winch adjustable in longitudinal direction.

i

Perforated stand rails for a safe transport.

i

6 pairs of lashing points (for length 3600 mm and 4200 mm) in external frame, 400 kg traction force each.

i

8 pairs of lashing points (for length 4200 mm) in external frame, 400 kg traction force each.

i

Tilting platform locked mechanically in tilted condition.

The extremely robust and durable design of the MTK makes this single-axle or tandem- axle trailer ideal for anyone who professionally transports vehicles. With a permissible gross weight of between 1500 and 3500 kg, you can transport even heavy passenger cars safely. The frame and chassis are hot-dip galvanised. The cable winch, which can be adjusted lengthways, is attached to a sturdy block. On extensible, hot-dip galvanised steel ramps, the vehicle is driven onto the trailer at a low drive-up angle. An optional hydraulic system lifts the bridge here. Tie-down options, with 400 kg pull force each, are available on the lateral outer frame to enable the safe tie-down of the goods.

The tiltable tandem axle vehicle transporter MTK in detail:

Bolted, hot-dip galvanised chassis
Welded, hot-dip galvanised tilting platform
Tilting platform mechanically tiltable by gas pressure springs
Steel ramps under the platform, extendable
Cable winch adjustable in longitudinal direction
Perforated stand rails for a safe transport
6 pairs of lashing points
8 pairs of lashing points
Tilting platform locked mechanically in tilted condition

Technical data

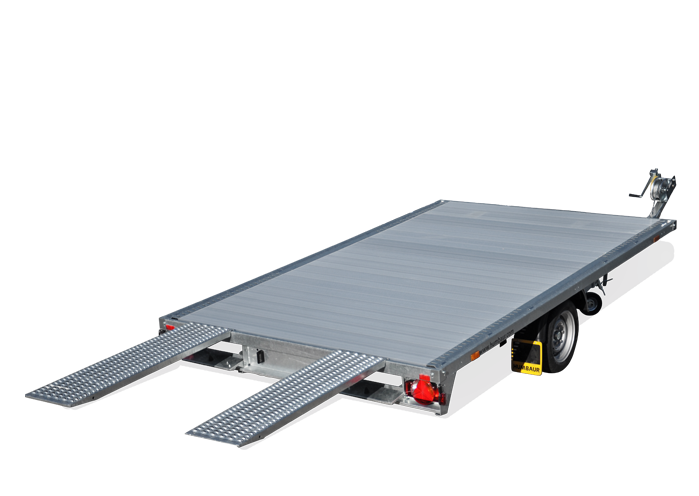

MTK Vehicle Transporter One Axle, Tiltable

Trailer MTK Vehicle Transporter One Axle, Tiltable in detail
MTK Vehicle Transporter One Axle, Tiltable silhouette sideview
Inner height 0 mmTotal height 900 mm
Inner length 3.600 mmTotal length 5.070 mm
MTK Vehicle Transporter One Axle, Tiltable silhouette backside
Inner width 2.180 mmTotal width 2.180 mm

MTK Vehicle Transporter One Axle, Tiltable Standard equipment

  • Screwed, hot-dip galvanised chassis
  • Welded, hot-dip galvanised tilting platform
  • Tilting platform tiltable mechanically by gas pressure springs
  • Loading ramps made by steel, stored under the platform
  • Lengthwise adjustable cable winch
  • Perforated stand rails for a safe transport
  • 6 pairs of lashing points in external frame, 400 kg

MTK Vehicle Transporter One Axle, Tiltable Models

Permissible gross weight in kg
1500
1800
Load capacity in kg
924
1185
Body dimensions in mm (LxWxH)
5070 x 2180 x 900
5070 x 2180 x 900
Internal dimensions in mm (LxWxH)
3600 x 2180 x 0
3600 x 2180 x 0
braked
Load height in mm
640
640
Tyre size in inches
13
13

MTK 153622

Permissible gross weight in kg
1500
braked
Body dimensions in mm (LxWxH)
5070 x 2180 x 900
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3600 x 2180 x 0
Load capacity in kg
924
Load height in mm
640



MTK 183622

Permissible gross weight in kg
1800
braked
Body dimensions in mm (LxWxH)
5070 x 2180 x 900
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3600 x 2180 x 0
Load capacity in kg
1185
Load height in mm
640



Images similar; some images show special equipment.
