HVK sales trailer

Your handy helper when it comes to mobile sales success
i

V drawbar, hot-dip galvanised

i

13-pin plug

i

Insulated floor plate 18 mm thick with PVC floor covering.

i

Body made from 45 mm sandwich panels

i

Central access door in front wall can be locked, aluminium treat plate step on drawbar.

i

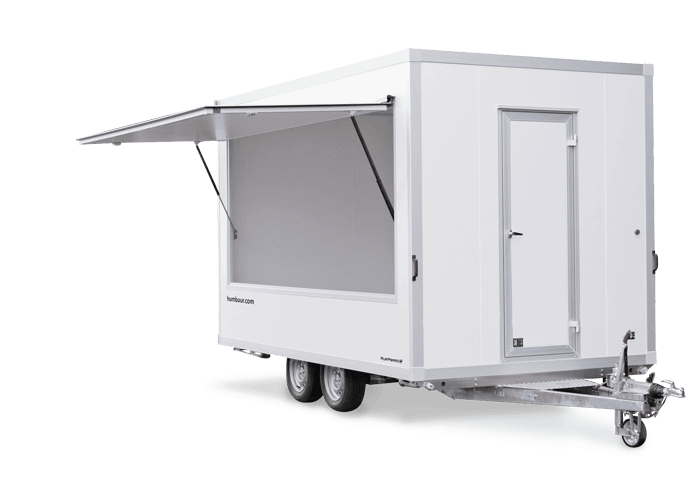

Sales hatch with gas spring support on right side in driving direction, locked from inside.

i

4 scissor-type supports

i

Counter approx. 565 mm at bottom, measured from floor plate.

i

Wheel housings integrated into body

i

2 manoeuvring handles

i

Jockey wheel

i

Humbaur multifunctional lighting with reversing light.

i

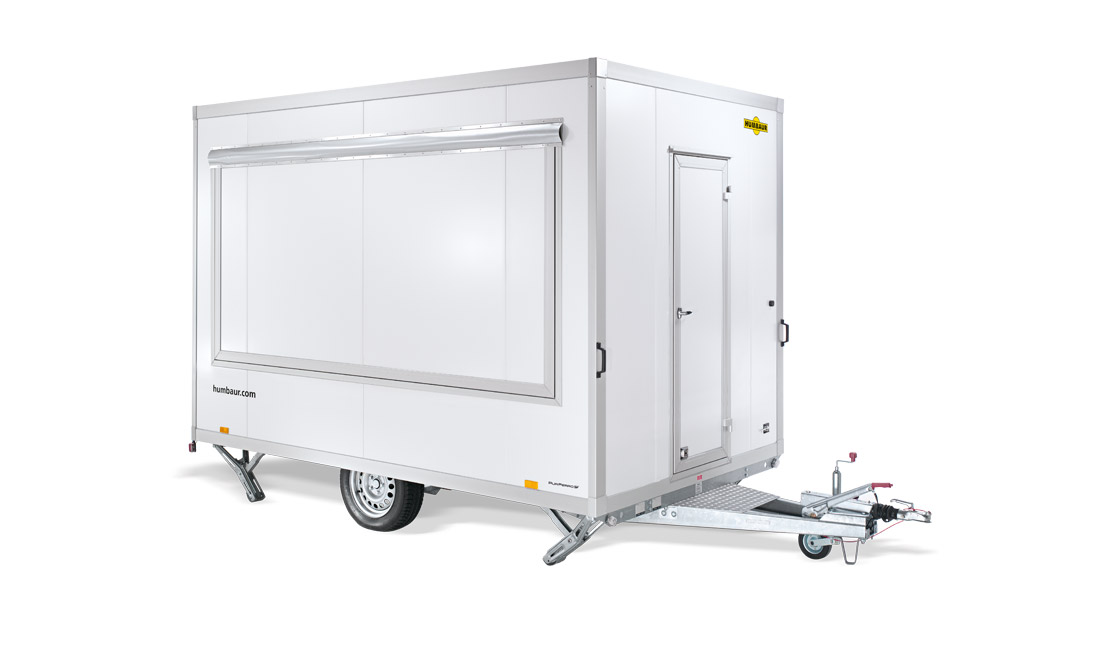

The HVK sales trailer is available both as single axle and a tandem axle model.

Our catering trailers make selling so much easier for you in many respects. Access to your catering trailer is via a door at the front. High-quality lighting has been provided in galvanised fittings. The body has a polyurethane core and is coated with galvanised, powder-coated steel plate on both ides. The well-designed flap is on the right side and has a hinged cover with rain protection. This means that your customers are always under cover. Gas springs help you open the flap. Do you have very particular requirements for your catering trailer? Find out more about our comprehensive range of accessories.

The sales box trailer HVK in detail:

V drawbar, hot-dip galvanised
13-pin plug
Insulated floor plate 18 mm thick with PVC floor covering
Body made from 45 mm sandwich panels
Central access door in front wall, can be locked
Sales hatch with gas spring support
4 scissor-type supports
Counter approx. 565 mm at bottom
Wheel housings integrated into body
2 manoeuvring handles
Jockey wheel
Humbaur multifunctional lighting with reversing light
Also available as a single axle model

Technical data

HVK Tandem - empty trailer PurFerro

Trailer HVK Tandem - empty trailer PurFerro in detail
HVK Tandem - empty trailer PurFerro silhouette sideview
Inner height 2.280 mmTotal height 2.860 mm
Inner length 3.690 mmTotal length 5.115 mm
HVK Tandem - empty trailer PurFerro silhouette backside
Inner width 2.130 mmTotal width 2.200 mm

HVK Tandem - empty trailer PurFerro Standard equipment

  • Hot-dip galvanised v-shaped coupling
  • 13-pin plug and reversing light
  • 18 mm thick base plate covered with PVC flooring
  • Construction using 30 mm thick PurFerro sandwich panels
  • Lockable entry door mounted centrally in the front bulkhead, foothold made from corrugated sheet aluminium mounted on the coupling
  • Vending hatch with hydraulic spring supports, on the right hand side of vehicle, locking from within
  • 4 hatch supports
  • Jockey wheel
  • Parapet height 565mm up from the floor
  • Integrated wheelhouses
  • 2 manoeuvring handles

HVK Tandem - empty trailer PurFerro Models

Permissible gross weight in kg
2000
2500
2000
2500
Load capacity in kg
965
1465
870
1370
Body dimensions in mm (LxWxH)
5115 x 2200 x 2860
5115 x 2200 x 2860
5615 x 2200 x 2860
5615 x 2200 x 2860
Internal dimensions in mm (LxWxH)
3690 x 2130 x 2280
3690 x 2130 x 2280
4190 x 2130 x 2280
4190 x 2130 x 2280
braked
Load height in mm
550
550
550
550
Tyre size in inches
13
13
13
13

HVK 20 37 22 - 24 PF30

Permissible gross weight in kg
2000
braked
Body dimensions in mm (LxWxH)
5115 x 2200 x 2860
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3690 x 2130 x 2280
Load capacity in kg
965
Load height in mm
550



HVK 25 37 22 - 24 PF30

Permissible gross weight in kg
2500
braked
Body dimensions in mm (LxWxH)
5115 x 2200 x 2860
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3690 x 2130 x 2280
Load capacity in kg
1465
Load height in mm
550



HVK 20 42 22 - 24 PF30

Permissible gross weight in kg
2000
braked
Body dimensions in mm (LxWxH)
5615 x 2200 x 2860
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
4190 x 2130 x 2280
Load capacity in kg
870
Load height in mm
550



HVK 25 42 22 - 24 PF30

Permissible gross weight in kg
2500
braked
Body dimensions in mm (LxWxH)
5615 x 2200 x 2860
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
4190 x 2130 x 2280
Load capacity in kg
1370
Load height in mm
550



Images similar; some images show special equipment.
