18 t The HTK
HTK 18 t
Designed for heavy use
Drawbar with screw-in towing eye Ø 50 mm, galvanised and infinitely variable using a crank handle.
Solid, welded, and hot-dip galvanised frame.
Laser-welded, high-quality steel sideboards, 500 mm height, can be folded down at the sides and rear, removable and hinged with central lock, bulkhead removable.
Reinforced with a 4 mm steel base made of fine-grain steel. Hot-dip galvanized bridge. 4 ball tilting bearings with 2 interchangeable tilting bearing bolts.
Motor-powered, hydraulic three-way tipping system, fivestep, hard-chromium-plated cylinder with stroke limiter.
With drum brake. Air suspension with shock absorbers, electronically controlled for tilt stabilization; Lifting and lowering function.
Extra-wide single tyres.
15-way connecting plug for lighting.
24 V lighting system with multiple-chamber tail lamps, optimally protected and LED side marking lamps.
Recessed in the platform floor: 5 pairs / 5.5 m; 6 pairs / 5.5 m.
- With splash guard system
2 wheel chocks with retainers
- Reinforced 12 t geared support jack with load and fast speeds, on the left in the direction of travel.

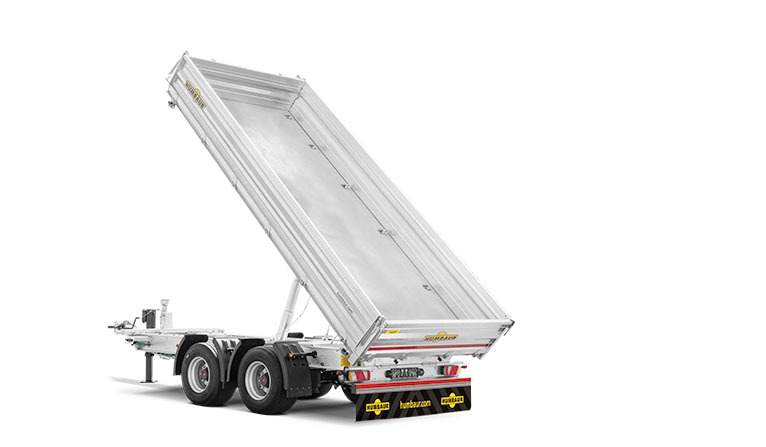

The large and economical three-way tipper HTK 18 t has a conveniently low load height for its class and has 600 mm high drop sides giving a large load volume. The extra-wide tyres ensure low ground pressure and mean that you will get through, even on bad roads and tracks.
HTK 185024 (with air suspension)
| Permissible gross weight in kg | 18000 | Body dimensions in mm | 7000 x 2550 x 1750 |
| Load capacity in kg | 13700 | Tilt angle (to side/rear) | 45 °/48 ° |
| Internal dimensions in mm | 5030 x 2420 | Tyre size in inches | 435/50 R19,5 |
| Load height in mm | 1135 |
HTK 185524 (with air suspension)
| Permissible gross weight in kg | 18000 | Body dimensions in mm | 7500 x 2550 x 1750 |
| Load capacity in kg | 13400 | Tilt angle (to side/rear) | 45 °/48 ° |
| Internal dimensions in mm | 5530 x 2420 | Tyre size in inches | 435/50 R19,5 |
| Load height in mm | 1135 |
Subject to technical modifications. All dimensions are approximate values and relate to the series vehicle without accessories.Additional equipment changes both the inherent weight and the load capacity!
What can I transport with the Humbaur HTK trailer?
Construction materials
Construction materials and pallet goods up to 10.2 t.
Crawler excavator
![[Translate to English:] Minibagger/Kompaktbagger](/fileadmin/content/anhaenger/static/10000/load_small_digger_7.png)
Mini-excavators and compact excavators up to a weight of approx. 13.8 to 14.1 tonnes, depending on the model.
Concrete pipes
![[Translate to English:] Symbolfoto Baumaterialien Abwasserrohre](/fileadmin/content/anhaenger/static/10000/load_pipes_hbtz_max_10t.png)
The HBTZ can also be loaded with particularly unwieldy and heavy construction materials such as concrete pipes.
