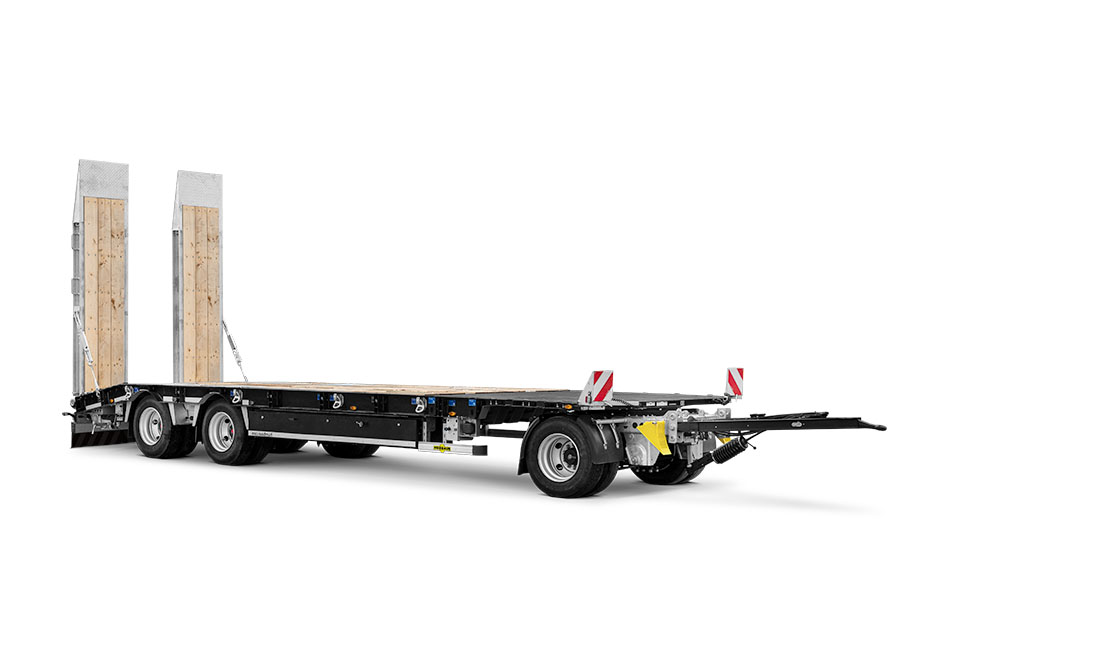

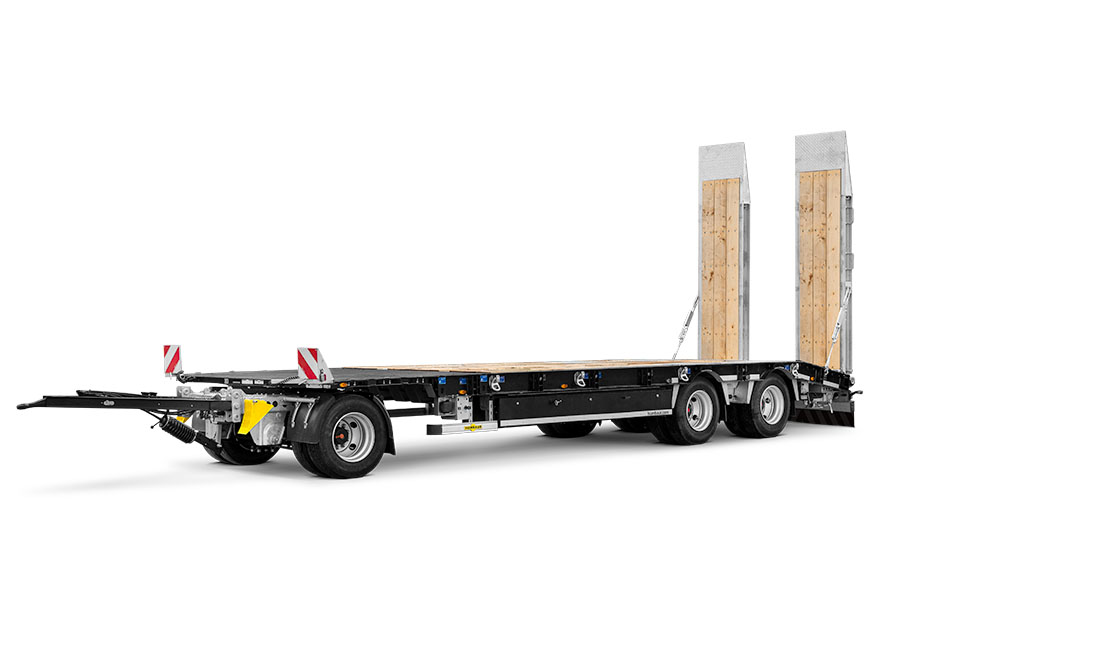

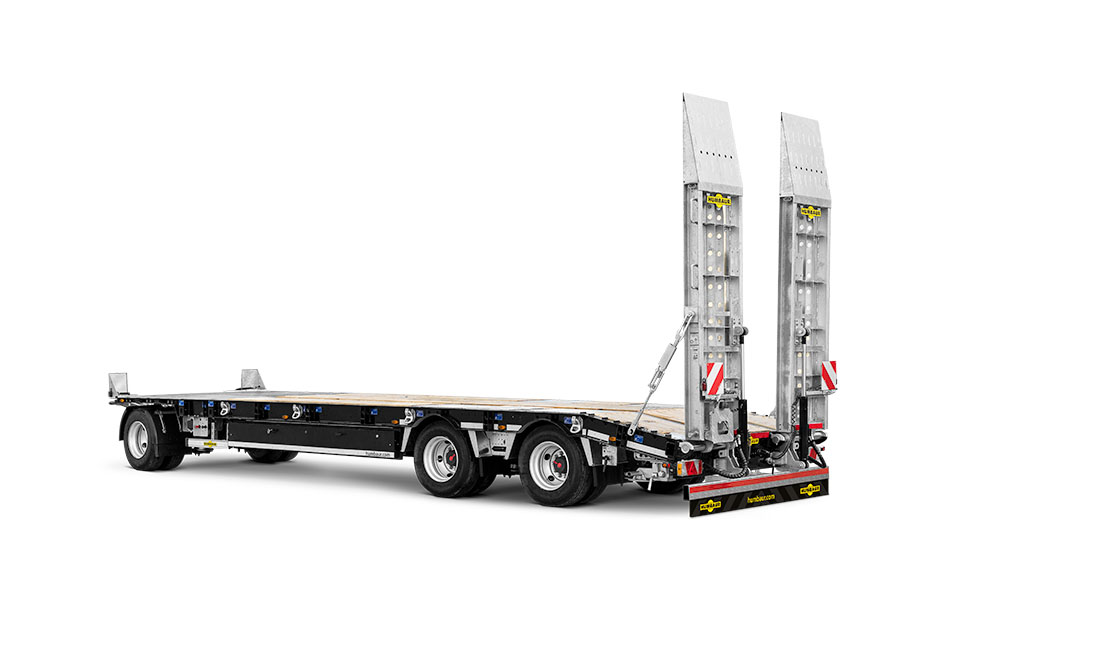

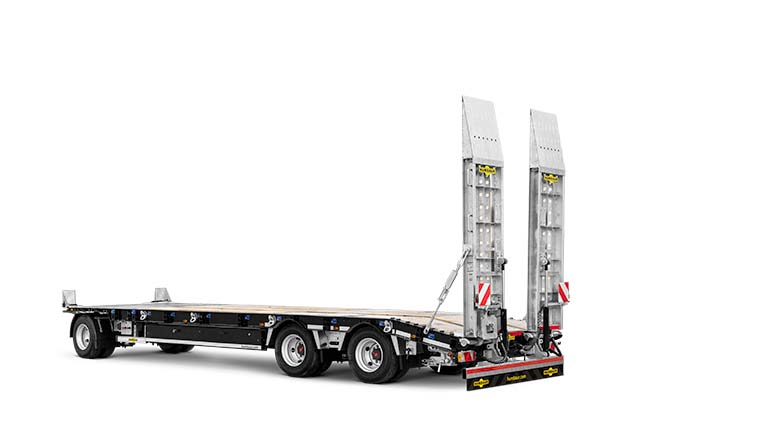

3-axle trailer The HTD

Flatbed turntable trailer with extras

For construction machine and container transport

Drawbar with 8° inclined towing ring Ø 40 mm, height-adjustable silent bushes.


Solid welded construction of turntable with large slewing ring


Solid, welded frame made of high-strength, fine-grained steel and full-length cross-beams for maximum stability, wheel recesses above the rear wheels, front corners chamfered, climbing rails on the ramp at the back for maximum safety during loading and unloading. Straight or cranked cargo bed.


Chassis and attachments are hot-dip galvanised in an immersion bath, optional excavator-style stacker.


Floor made of 50 mm softwood planks.


5 pairs of 10 t lashing points recessed in the platform floor.


Air suspension aggregate that can also lift and lower the rear axle.


Single-section, hot-dip galvanised drive-on ramps, laterally movable, directly acting, fixed spring lifters for convenient operation, optimally secured by a turnbuckle and latch.


Flatbed axles with closed drum brake.


EBS braking system, spring-loaded parking brake.


Light clusters, impact-proof and secured against vibration, protected in the underride protection, 24 V, 15-wire connection cable.


Foldable lateral impact protection, contour markers at the sides and rear.

  • Front half-shell mudguard with anti-spray system in front,
  • steel mudguard with anti-spray system at the rear

2 wheel chocks with retainers.

In addition to construction machinery, do you sometimes need to transport 10-foot or 20-foot ISO containers? With optional Twistlock locks and a flat cargo bed, this model is particularly well equipped for your transport application. It is no trouble for the HTD 30, however, if you load it with construction machinery, heavy work equipment, materials, palletted goods or shuttering. The rear wall can be supported, lowered and approached on sturdy drive-up ramps.

Details of the HTD 3-axle straight flatbed turntable trailer:

Solid, welded construction of the turntable
Solid welded frame
Optimal corrosion protection
Floor made of 50 mm softwood planks
5 pairs of tie-down rings
Air suspension system incl. lifting and lowering
Single-section, hot-dip galvanised drive-on ramps
Flatbed axles with closed drum brake
Braking system
Light clusters
Foldable lateral impact protection
2 wheel chocks with retainers

Technical data

HTD 308525-3A straight

Permissible gross weight in kg 24000* / 30000** Body dimensions in mm 10770 x 2540 x 3780
Load capacity in kg 17600* / 23600** Drive-up angle 10 °
Internal dimensions in mm 6500 x 2520 Tyre size in inches 12-fach 235/75 R17,5
Load height in mm 930

* Permissible gross weight for distributable load without special permit  ** Permissible gross weight for non-distributable load with special permit in accordance with § 70 STVO (German Road Traffic Act)
Subject to technical modifications. All specifications are approximate values and relate to a series vehicle without accessories. Additional equipment will change both the empty weight and the load capacity!

What can I transport with the Humbaur HTD trailer?


10- or 20-foot ISO containers fit due to the special twistlock latches on the straight HTD

Mobile excavators and wheel loaders

Mobile excavators and wheel loaders up to a weight of approx. 17.6 to 23.6 tonnes, depending on the model.

Crawler excavator

Crawler excavator with a weight up to approx. 17.6 - 23.6 tonnes, depending on the model.
