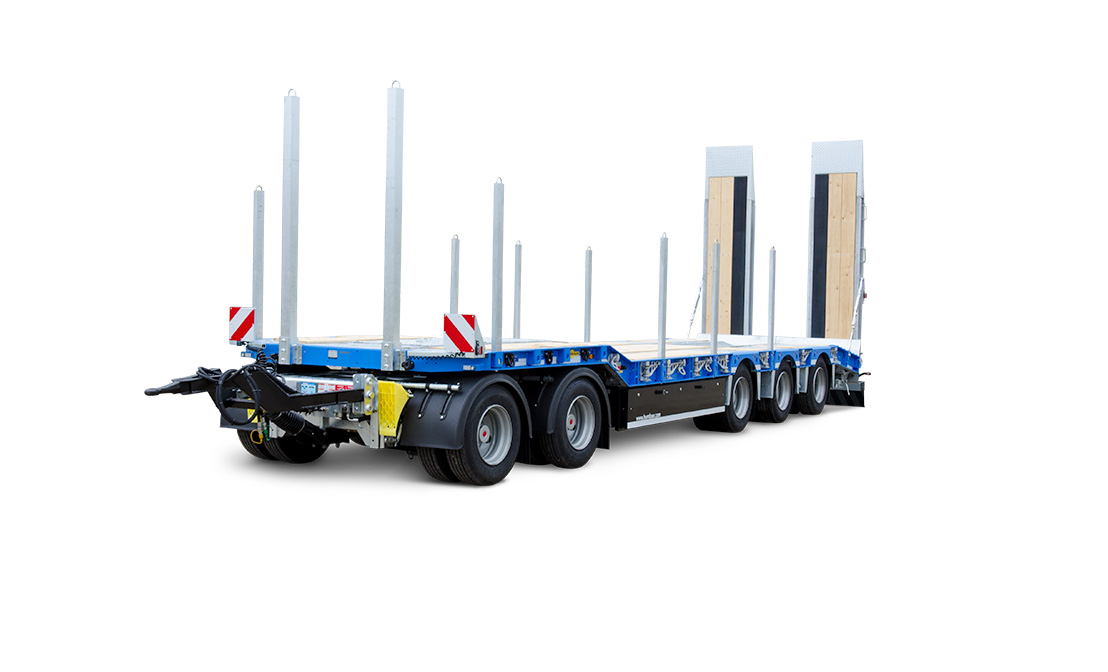

5-axle trailer The HTD
HTD 5The five-axle top model
Drawbar with 8° inclined towing ring Ø 40 mm, height-adjustable silent bushes.
Solid welded design made from high-strength fine-grained steel, chassis frame hot-dip galvanised by immersion bath, full-length cross-beams for maximum stability.
Floor made of 50 mm softwood planks.
Low-maintenance slewing ring.
Wheel recesses above the rear wheels, steel fenders with anti-spray system.

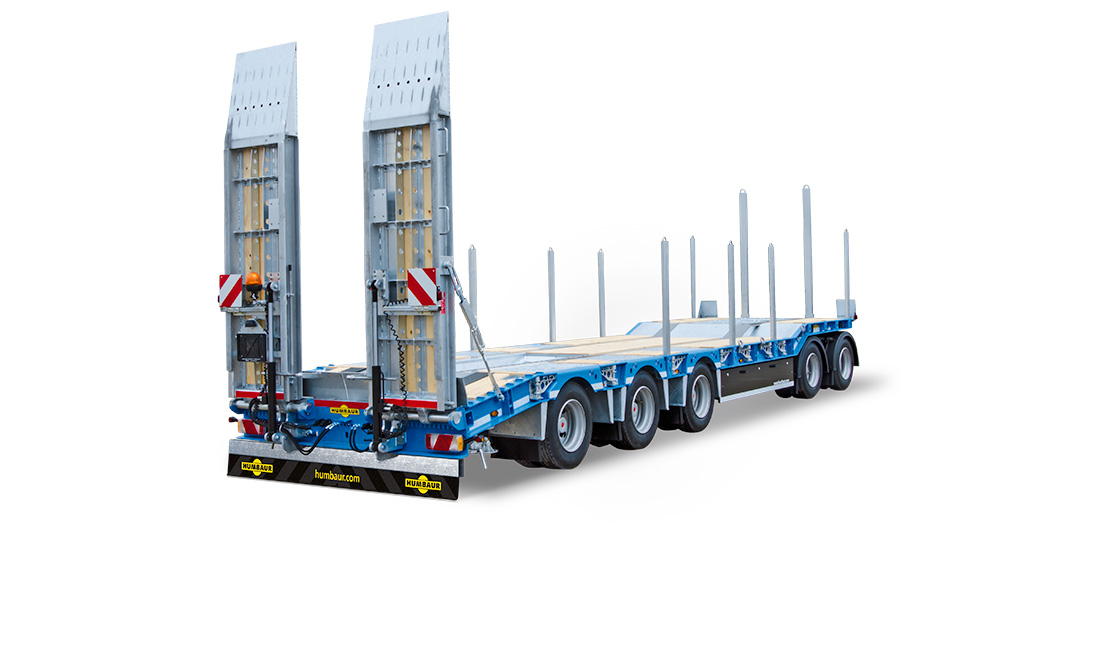

Climbing rails on the ramp at the back – maximum safety during loading and unloading.
SAF flatbed trailer axles with closed S-cam brake, air suspension aggregate that can also lift and lower the rear axle.
EBS braking system, spring-loaded parking brake.
3 pairs of 10 t lashing rings recessed in the flatbed 2 pairs of 10 t lashing rings recessed in the upper part of the loading area, optional 5 pairs of 3 t lashing and stanchion recesses in the outer frame.
Single-section, hot-dip galvanised drive-on ramps (3100 mm x 750 mm), laterally movable, directly acting, fixed spring lifters for convenient operation, optimally secured by a turnbuckle and latch.
Optional stowage box.
2 wheel chocks with retainers.
15-wire connection cable
Light clusters, impact-proof and insulated, protected in the underride protection.
Retro-reflective contour marking in accordance with ECE Directive R 48 white on the side, red in the rear.
Our top model for extremely heavy tasks with a total weight of up to 50 tons. Its solid welded construction, high-strength fine-grain steel, and cargo bed which can be loaded by air-suspension make the HTD 5-axle model a reliable partner. The cranked cargo bed area serves as a stop for wheeled or tracked vehicles. The cargo rests against a stop and is easier to secure. The model has single-part hot-dip galvanised, movable drive-up ramps.

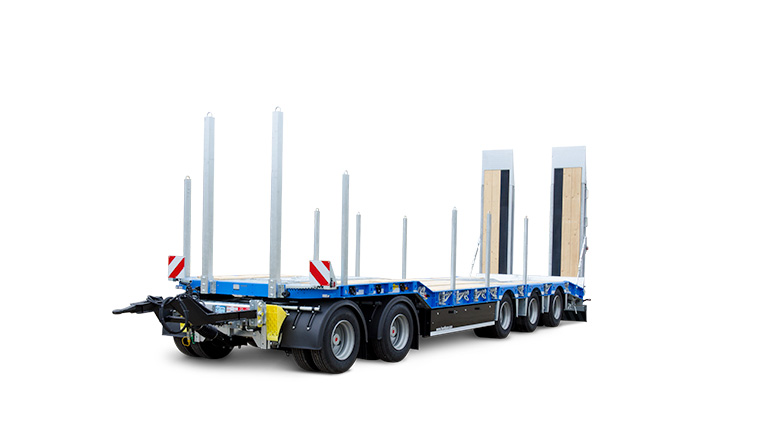

Details of the HTD 5-axle flatbed turntable trailer:
|Permissible gross weight in kg||24000* / 50000**||Body dimensions in mm||11790 x 2540 x 3760|
|Load capacity in kg||13100* / 39100**||Empty weight in kg||10900|
|Internal dimensions in mm||9822 x 2540||Tyre size in inches||235/75 R17,5|
|Load height in mm||890||Low bed length: in mm||7213|
* Permissible gross weight for distributable load without special permit ** Permissible gross weight for non-distributable load with special permit in accordance with § 70 STVO (German Road Traffic Act)
Subject to technical modifications. All specifications are approximate values and relate to a series vehicle without accessories. Additional equipment will change both the empty weight and the load capacity!
What can I transport with the HTD 5-axle flatbed turntable trailer?
Mobile excavators and wheel loaders
Mobile excavators and wheel loaders up to a weight of approx. 13.1 to 39.1 tonnes, depending on the model.
Crawler excavator with a weight up to approx. 13.1 - 39.1 tonnes, depending on the model.
