Single axle trailer HA Multi
HA MultiThe versatile transport aid
Galavnised v-shaped drawbar
13 pin plug
Floor plate 15 mm thick
Drop sides made of anodised, double-walled aluminium profiles.
6 lashing rings integrated in the side walls, traction force 400kg per ring, Dekra tested
Humbaur multifunction lighting integrated into underride protection.

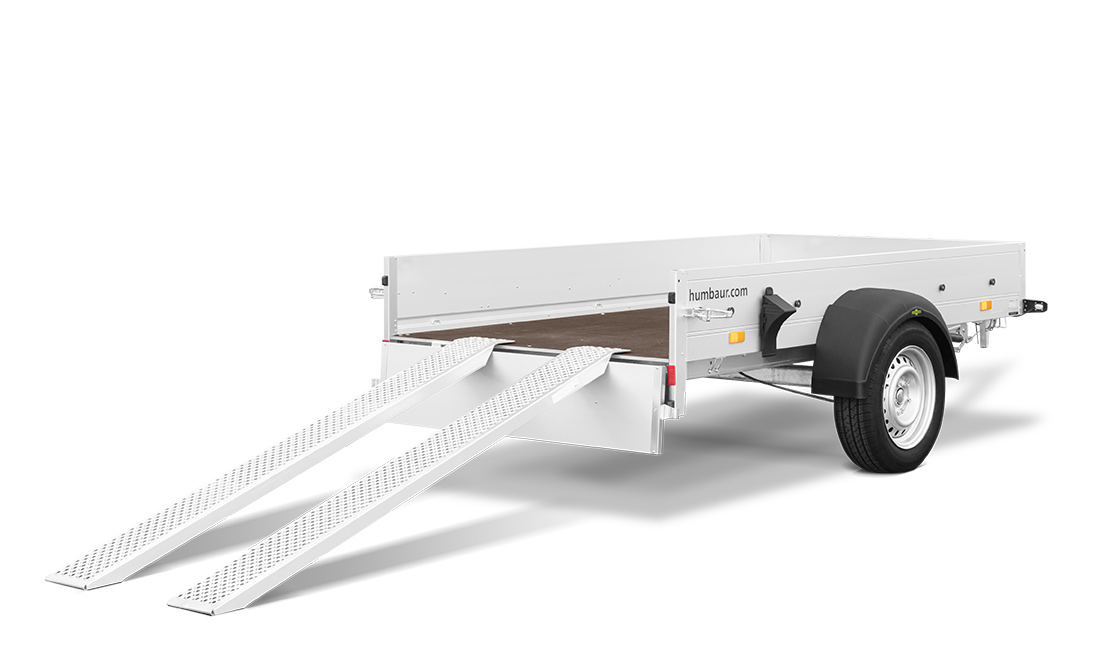

Insertion option for drive-on ramps
Corner stanchions with insert option
Round buttons for tarpaulin or load securing net
Available as an optional accessory.

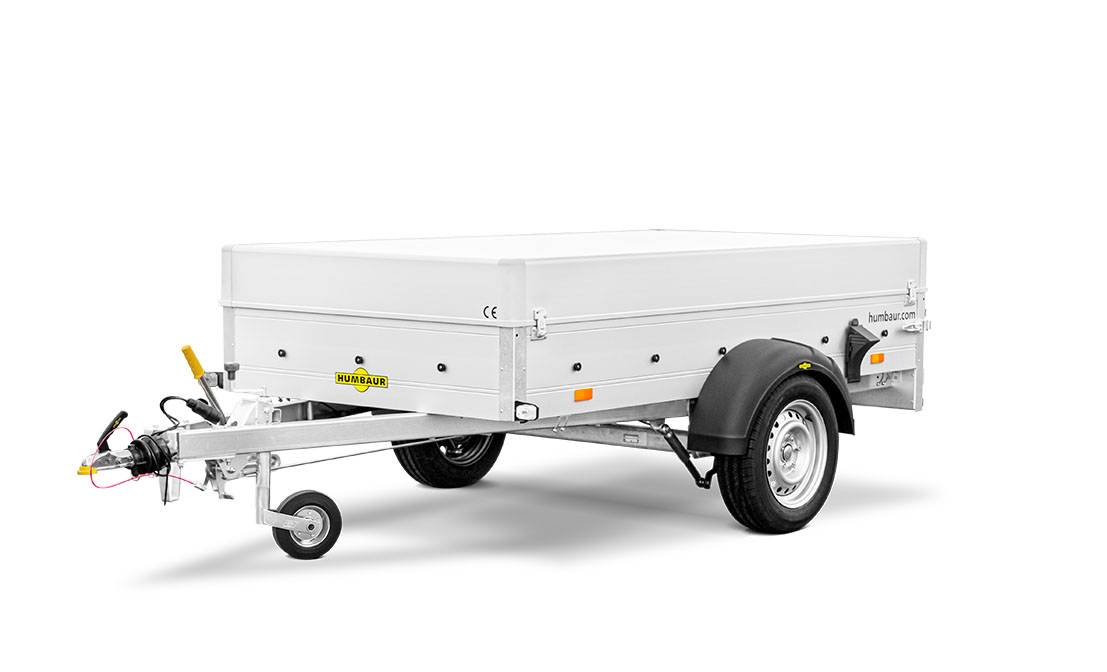

The HA Multitransporter is a car-trailer suitable for a wide range of applications. The box trailer has a fixed front wall and side walls made of anodised, double-walled aluminium profiles with a height of 300 mm. The tailgate is equipped with toggle-type fasteners. The loading area of the flatbed trailer measures 2510 x 1310 mm. Three pairs of tie-down hoops are recessed into the side walls for securing the load. The tensile force is 400 kg per hoop. The HA Multitransporter can be equipped in a variety of ways thanks to features such as its corner stanchions with insert options, which can be used to fit additional side-wall elements 30 cm in size. A flat cover and an aluminium cover are available as accessories to provide protection from above. A motorcycle rail can also be retrofitted as an accessory and the option to fit loading planks is planned as a new standard feature of the series. The 15-mm thick, weather-resistant floor plate is sufficiently robust for any application. The HA Multitransporter is available in two variants: without a brake, with a permissible maximum weight of 750 kg, and with a brake and a permissible maximum weight of 1300 kg. The version with a brake includes a jockey wheel as standard.
HA Multi Standard equipment
- Galavnised v-shaped drawbar
- 13 pin plug and reversing light from 751kg (gross weight)
- Side walls made of anodised double-walled aluminum profiles
- 6 lashing rings integrated in the side walls, traction force 400kg per ring, Dekra tested
- Humbaur lighting integrated in the underrun protection
- Insertion of the loading planks possible
- Possibiltiy to insert corner stanchions
