Ultra light and super slim
The most important features of the HD 7.5t model

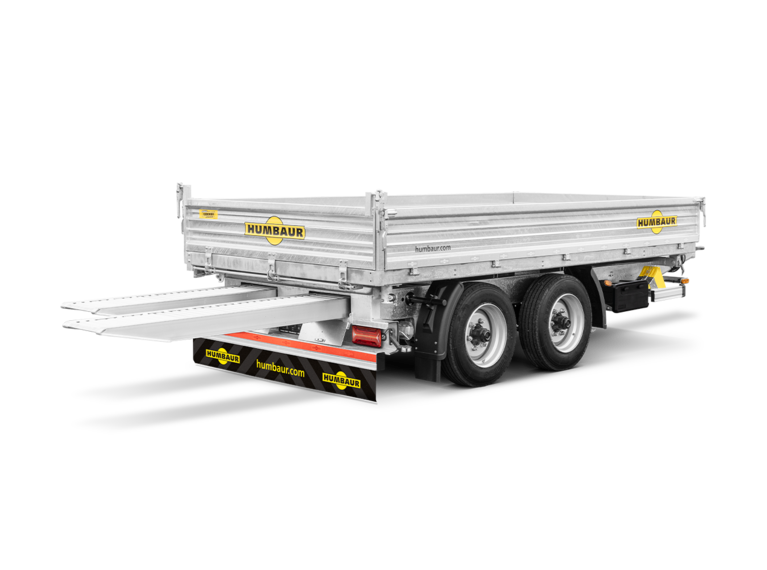

HTK 7.5t
Easy to use.
- Steplessly adjustable draw tube
- 15-pin connector
HTK 7.5t
Use it for life.
- galvanised drawbar
- Bridge frame reinforced with 4 mm steel floor plates
- Optimal corrosion protection thanks to primed and lacquered side panels
HTK 7.5t
Secure transport.
- Axles with drum brakes
- Maintenance-free parabolic suspension with load balancing
Additional equipment features
Axles with parabolic suspension
Compressed air brake with release valve, automatic load-dependent ALB brake, connecting lines with couplings in red/yellow, ABS system with spinal parking brake
Single-circuit hydraulic connection, control via tow vehicle
- 24 V splash-proof and vibration-resistant lights
- 15-pin connector
- Optional electronic hydraulic system 12 V with battery and hand pump
- Swinging cover in the back with central locking mechanism
- 2 pairs 3 t set-in lashing rings
- 3 pairs 1 t set-in lashing rings
Lockable mounting slot for optional aluminium ramps integrated into the chassis frame
- Chassis and bridge frame hot-dip galvanised
- Steel side panels 400 mm high, can be folded down or removed on the sides and at the back; solid steel front wall, removable
- Four-level telescoping cylinder
- Floor panels made of 4 mm galvanised steel sheets
Model
-
HTK 754020
with stowable aluminium ramps
Gross weight:7 500 kgLoad capacity:5 600 kgInner length:4 000 mmInner width:2 030 mm
All information is provided without guarantee. Subject to change without notice. Images may show optional equipment. Accessories are available as an option.
