Construction machinery transporter HS

Humbaur HS

Always an advantage for construction machines
i

Screwed V drawbar, hot-dip galvanised by immersion bath

i

13-pin plug and reversing light

i

Welded drop side/frame construction of steel plate, hot-dip galvanised by immersion bath.

i

Upright steel drive-on ramps (1530 x 360 mm) hot-dip galvanised by immersion bath, load capacity for each ramp 1500 kg, with anti-slip surface and integrated support legs.

i

12 tie-down rings (6 pairs) mounted in the outer frame with a box trailer length of 3000 mm or 14 rings (7 pairs) with 3750 mm, pull force of 1000 kg per tie-down ring.

i

Jockey wheel

i

Walk-on-able steel mudguards which terminate with the drop sides.

i

Humbaur multifunctional lighting

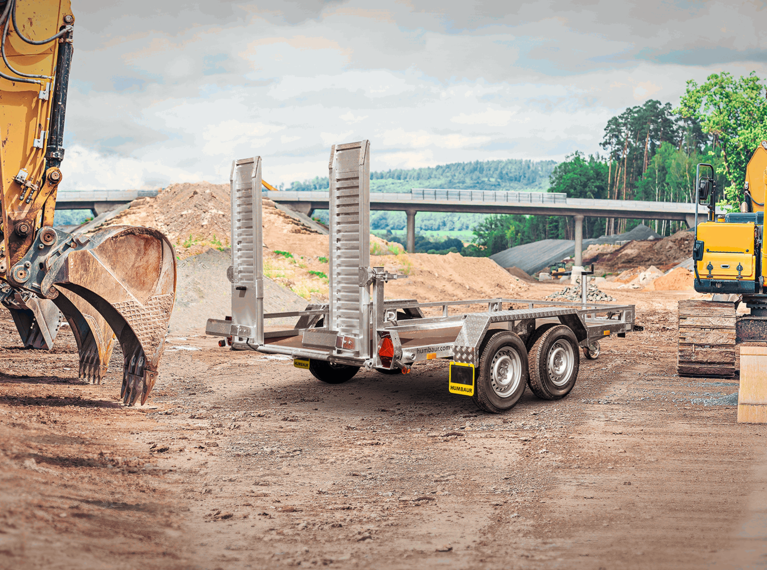

Do you regularly have to transport lightweight or medium weight construction machinery or diggers? The sturdy and solid construction of the HS is designed for daily transport tasks. The low loading height facilitates loading. The mudguards with aluminium chequerplate that can be stood on, and the protected lighting units make it particularly durable in day-to-day operations.

Tandem axle HS in detail:

Screwed V drawbar, hot-dip galvanised by immersion bath
13-pin plug and reversing light
Welded drop side/frame construction of steel plate, hot-dip galvanised by immersion bath
Upright steel drive-on ramps hot-dip galvanised by immersion bath
12 tie-down rings (6 pairs) mounted in the outer frame
Jockey wheel
Walk-on-able steel mudguards which terminate with the drop sides
Humbaur multifunctional lighting

360° view

Technical data

Tandem axle with steel ramps

Trailer Tandem axle with steel ramps in detail
Tandem axle with steel ramps silhouette sideview
Inner height 270 mmTotal height 2.015 mm
Inner length 3.000 mmTotal length 4.960 mm
Tandem axle with steel ramps silhouette backside
Inner width 1.600 mmTotal width 2.200 mm

Tandem axle with steel ramps Standard equipment

  • Welded drop-side-/frame construction made by steel plate, hot-dipgalvanized
  • Welded V-drawbar, hot-dip galvanized
  • 13 pole plug and reversing light
  • Hot-dip galvanized steel ramps (1530 x 360 mm loading capacty perramp 1500 kg), standing upright with anti slip grid covering as well asintegrated folding legs
  • Lashing rings mounted in external frame (6 pairs at 3000 mm / 7 pairs at3750 mm internal length.), traction force 1000 kg per lashing ring
  • Jockey wheel
  • Passable steel mudguards, flush with the drop-side

Tandem axle with steel ramps Models

Permissible gross weight in kg
2500
3000
3500
2500
3000
3500
Load capacity in kg
1890
2390
2830
1810
2310
2760
Body dimensions in mm (LxWxH)
4960 x 2200 x 2015
4960 x 2200 x 2015
4960 x 2200 x 2020
5710 x 2453 x 2015
5710 x 2453 x 2015
5710 x 2453 x 2020
Internal dimensions in mm (LxWxH)
3000 x 1600 x 270
3000 x 1600 x 270
3000 x 1600 x 270
3750 x 1850 x 270
3750 x 1850 x 270
3750 x 1850 x 270
braked
Load height in mm
370
370
410
370
370
410
Tyre size in inches
12
12
13
12
12
13

HS 253016

Permissible gross weight in kg
2500
braked
Body dimensions in mm (LxWxH)
4960 x 2200 x 2015
Tyre size in inches
12
Internal dimensions in mm (LxWxH)
3000 x 1600 x 270
Load capacity in kg
1890
Load height in mm
370



HS 303016

Permissible gross weight in kg
3000
braked
Body dimensions in mm (LxWxH)
4960 x 2200 x 2015
Tyre size in inches
12
Internal dimensions in mm (LxWxH)
3000 x 1600 x 270
Load capacity in kg
2390
Load height in mm
370



HS 353016

Permissible gross weight in kg
3500
braked
Body dimensions in mm (LxWxH)
4960 x 2200 x 2020
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3000 x 1600 x 270
Load capacity in kg
2830
Load height in mm
410



HS 253718

Permissible gross weight in kg
2500
braked
Body dimensions in mm (LxWxH)
5710 x 2453 x 2015
Tyre size in inches
12
Internal dimensions in mm (LxWxH)
3750 x 1850 x 270
Load capacity in kg
1810
Load height in mm
370



HS 303718

Permissible gross weight in kg
3000
braked
Body dimensions in mm (LxWxH)
5710 x 2453 x 2015
Tyre size in inches
12
Internal dimensions in mm (LxWxH)
3750 x 1850 x 270
Load capacity in kg
2310
Load height in mm
370



HS 353718

Permissible gross weight in kg
3500
braked
Body dimensions in mm (LxWxH)
5710 x 2453 x 2020
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3750 x 1850 x 270
Load capacity in kg
2760
Load height in mm
410



Images similar; some images show special equipment.
